• Lifting Capacity: 5~1000t, customized
• Lifting Height: 6~100m, customized
• Duty class: M5 / M6/ M7/ M8
• Design standard: F.E.M, DIN, EN, ISO
Applicable for heavy duty lifting job, PLC control
The motor power is reduced by 30% compared with traditional winch trolley
Through the mature application of Variable frequency positioning technology, the work efficiency is improved by more than 20%
Adopt international brand and maintenance-free steel wire rope
International brand electrical components, bearings, and controller
Hydraulic brake with automatic compensation of brake clearance and maintenance-free function
Height limiter + Overload protection + travel limit switch (slow & stop)
The high-precision hard gearbox has been filled with international brand lubricants before delivery, no need to replace it within service cycle
No metal dust caused by the slide friction between nylon rope, steel wire rope and drum, providing high cleanness operation environment

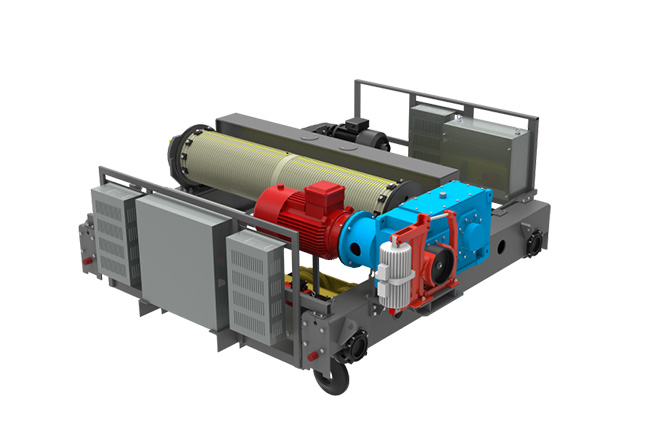

• For Double girder Overhead Crane, Gantry Crane, Semi-gantry cranes etc.
|
Capacity(t) |
5 |
10 |
20 |
50 |
100 |
150 |
300 |
500 |
800 |
1000 |
|
Hoisting height (m) |
6-100 |
6-100 |
6-100 |
6-100 |
6-100 |
6-100 |
6-100 |
6-100 |
6-100 |
6-100 |
|
Hoisting speed (m/min) |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
2~10 |
|
Traveling speed (m/min) |
2~40 |
2~40 |
2~40 |
2~40 |
2~40 |
2~40 |
2~40 |
2~40 |
2~40 |
2~40 |
|
Electric control |
Variable frequency control, PLC control |
|||||||||
|
Duty Class |
M5/ M6 / M7/ M8 |
|||||||||
|
Operation |
Pendent control / Remote control / Cabin |
|||||||||
|
Power supply |
3Ph,380V,50Hz or customized |
|||||||||
|
Note |
GREATHOIST has more options for Hoisting speed and hoisting motor power, pls contact us for details, thanks! |
|||||||||
