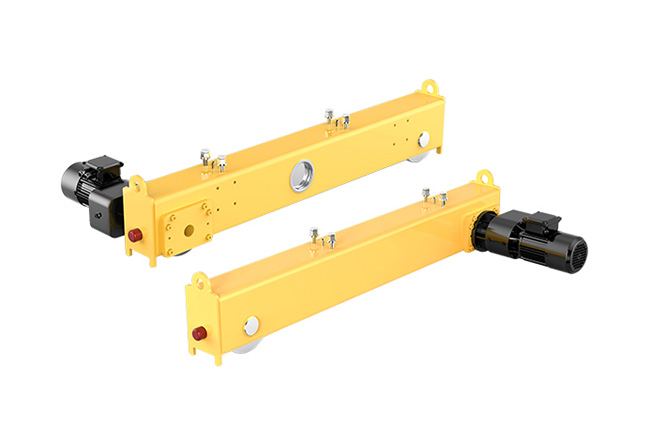

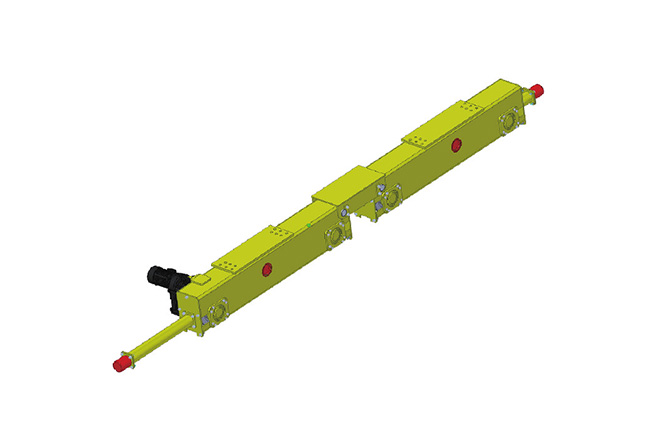

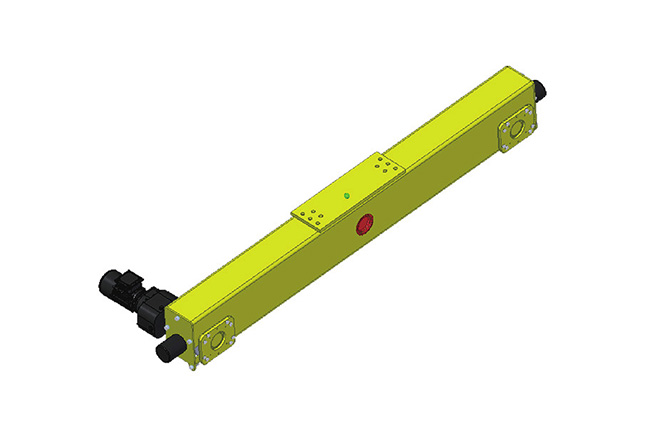

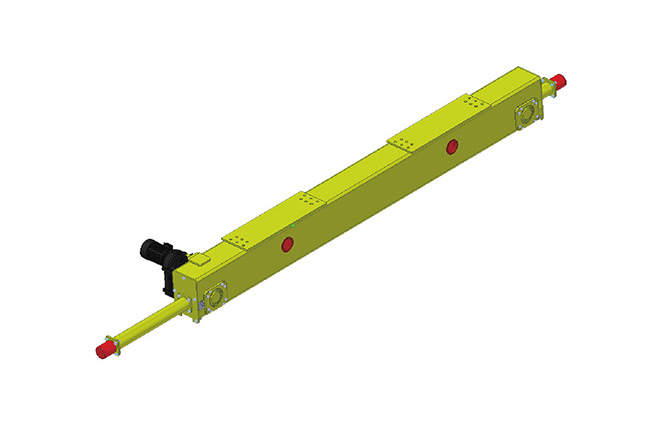

End Carriage

Main Features

• Three-in-one gear-motor

• Frequency converter control

• Customized design acceptable

Technical Parameters

Crane type	Capacity	Span(m)	Tube Spec.	Wheel Diameter (mm)	Motor	Speed
Crane type	Capacity	Span(m)	Tube Spec.	Wheel Diameter (mm)	Power	(m/min)
Single girder Overhead crane	3T	10.5	150x150x8x1700	110	0.44kw	30
		13.5	150x150x8x1700	110	0.44kw	30
		16.5	150x200x8x2000	110	0.44kw	30
		19.5	150x200x8x2500	110	0.44kw	30
		22.5	150x250x8x3000	125	0.44kw	30
		25.5	150x250x8x3400	140	0.64KW	30
		28.5	150x250x8x3400	140	0.64KW	30
Single girder Overhead crane	5T	10.5	150x200x8x1700	110	0.44kw	30.1
		13.5	150x200x8x1700	110	0.44kw	30.1
		16.5	150x200x8x2000	125	0.44kw	30.1
		19.5	150x250x8x2600	140	0.64kw	25-30
		22.5	150x250x8x3000	140	0.64kw	25-30
		25.5	150x250x8x3400	160	0.65kw	25-30
		28.5	150x250x8x3400	160	0.65KW	25-30
Single girder Overhead crane	10T	10.5	150x200x8x1700	140	0.64KW	25-30
		13.5	150x200x8x2000	140	0.64KW	25-30
		16.5	200x300x10x2300	160	0.96KW	30
		19.5	200x300x10x2900	200	0.96KW	30
		22.5	200x300x10x3300	200	0.96KW	30
		25.5	200x400x10x3500	200	0.96KW	30
		28.5	200x400x10x3500	250	0.96KW	30

Related Products

Single Girder Hoist-Low Headroom

The motor power is reduced by 30% compared with traditional electric hoist

Low Headroom Double Girder Hoist

The motor power is reduced by 30% compared with traditional electric hoist

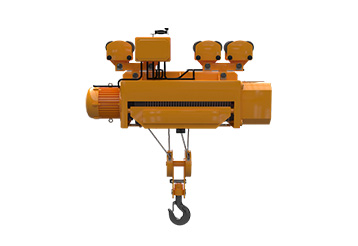

16t~100t-Single Girder Hoist

Model: M3 (HC/HM)、M4 (FMHC/FMHM )

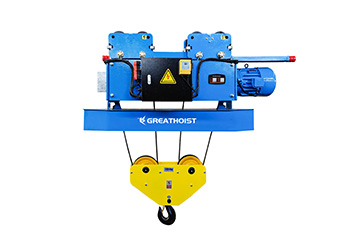

FOH Model Hoist – Compacted Design

This product is designed for the new pickling galvanizing industry special products, low headroom compact, suitable for acid house and track limited sites, can maximize the effective lifting height; It owns following features.

OHFM Model European Design Hoist

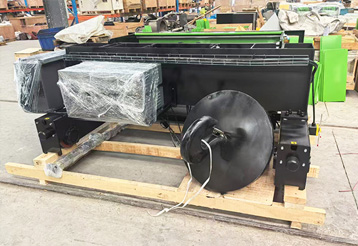

European Design Metallurgical Hoist
