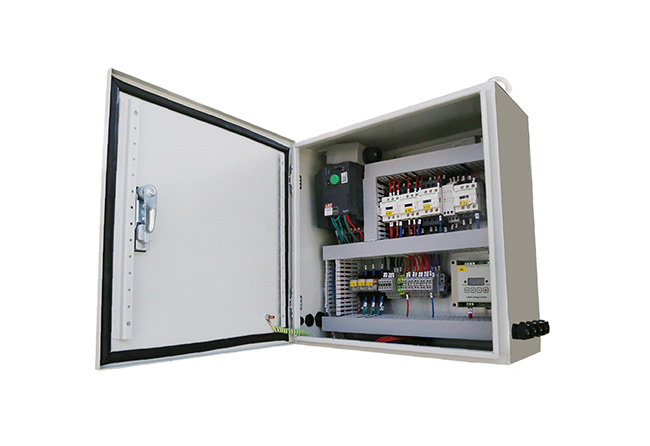

Electrical control panel

Main Features

• Electric Control Panel for Single Girder Overhead Crane

• Electric Control Panel for Double Girder Overhead Crane

Technical Parameters

Crane type	Electric Control Panel Specifications	Rated Voltage	Rated Control Voltage	Rated Current	Crane Rated Power	Crane Rated Current	Electric Control Panel Dimensions	Cabinet Size	Installation Method	Installation Size
Electric Control Panel for Single Girder Overhead Crane	GHS03T0160948	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	16A	4KW	4A	855X420X220	650X420X220	Suspension Type	610X160
	GHS03T0160948	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	16A	4KW	9A	855X420X220	650X420X220	Suspension Type	610X160
	GHS05T0160448	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	25A	5.5KW	4A	855X420X220	650X420X220	Suspension Type	610X160
	GHS05T0160948	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	25A	4KW	9A	855X420X220	650X420X220	Suspension Type	610X160
	GHS10T0400948	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	40A	5.5KW	9A	855X420X220	650X420X220	Suspension Type	610X160
	GHS10T0501348	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	50A	5.5KW	13A	855X420X220	650X420X220	Suspension Type	610X160
	GHS20T0500948	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	50A	5.5KW	9A	855X420X220	650X420X220	Suspension Type	610X160
	GHS20T0501348	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	50A	5.5KW	13A	855X420X220	650X420X220	Suspension Type	610X160
	GHS20T0631348	3PH AC380-460V 50/60HZ	AC48V 50/60HZ	63A	5.5KW	13A	955X450X220	750X500X220	Suspension Type	710X160
