Usage: ships, docks, coastal use

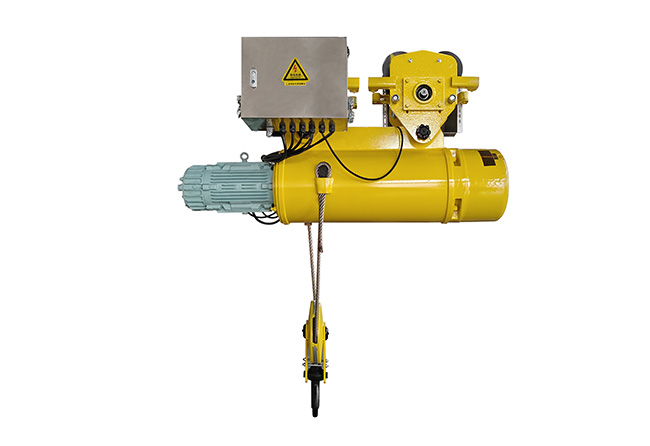

Features: Marine hoist operating mechanism for anti-rocking rack type, with special anti-corrosion, acid and alkali resistance.
Marine hoist is suitable for the use of oil mist, salt spray, mold, motor after special treatment, IP55 waterproof motor, insulation class F.
Power off manual release device, power off state can safely release heavy objects.

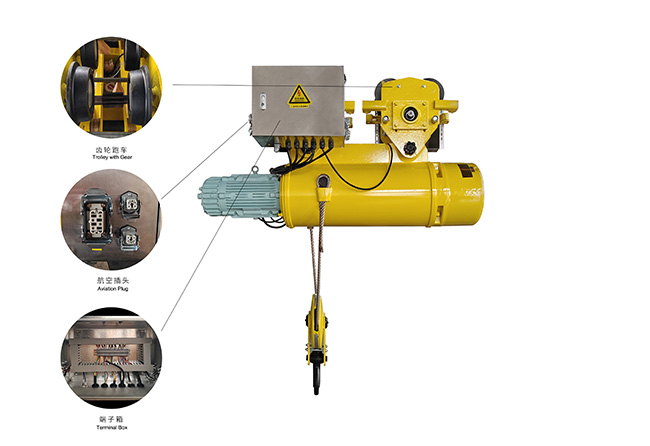

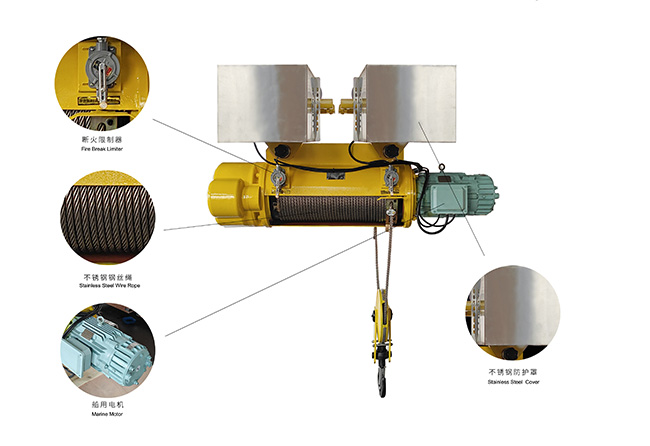

The use of Marine inspection galvanized steel wire rope, hook pulley, electric control box and other accessories.
With the upper limit double limit function.
Weight limit protection function.
The trolley adopts rack drive to adapt to the use environment of sea and ship vibration and tilt.
With overload, overcurrent, loss of voltage, mis-phase, limit alarm and other protection functions.
1. Engine room driving: mainly used for maintenance of ship main engine, replacement of piston and other important parts during sea trial.
2. Deck crane: mainly used for lifting cargo and materials on board.
|
Capacity(t) |
0.5 |
1 |
2 |
3 |
5 |
10 |
16 |
|
Hoisting height (m) |
6-18 |
6-30 |
6-30 |
6-30 |
6-30 |
6-30 |
9-24 |
|
Reeving Ratio |
1/2 |
1/2 |
1/2 |
1/2 |
1/2 |
2/4 |
1/4 |
|
Hoisting speed (m/min) |
8 （0.8/8） |
8 （0.8/8） |
8 （0.8/8） |
8 （0.8/8） |
8 （0.8/8） |
7（0.7/7） |
3.5 （0.35/3.5） |
|
Hoisting motor (kw) |
0.8 |
1.5 |
3.0 |
4.5 |
7.5 |
13 |
13 |
|
Traveling speed (m/min) |
20 |
20 |
20 |
20 |
20 |
20 |
20 |
|
Traveling motor (kw) |
0.2 |
0.2 |
0.4 |
0.4 |
0.8 |
0.8*2 |
0.8*2 |
|
Class |
M3/M4 |
M3/M4 |
M3/M4 |
M3/M4 |
M3/M4 |
M3/M4 |
M3/M4 |
|
Operation |
Pendent control / Remote control |
||||||
|
Power supply |
3Ph,380V,50Hz |
||||||
