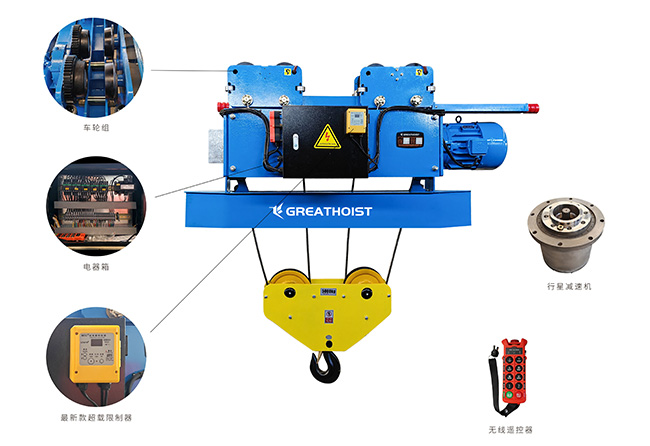

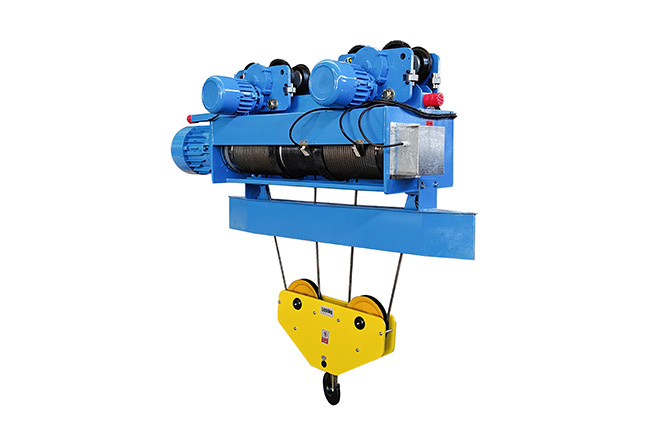

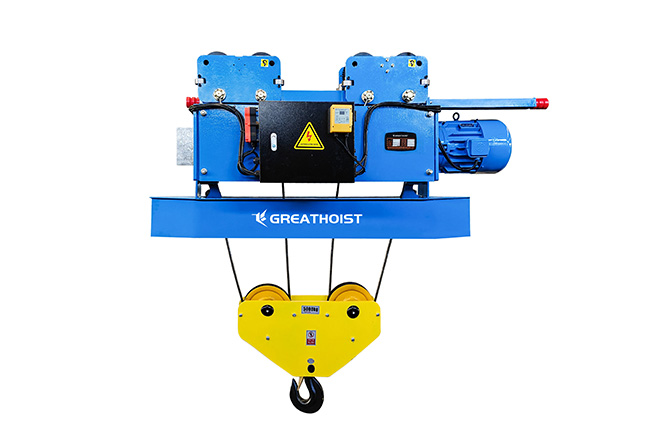

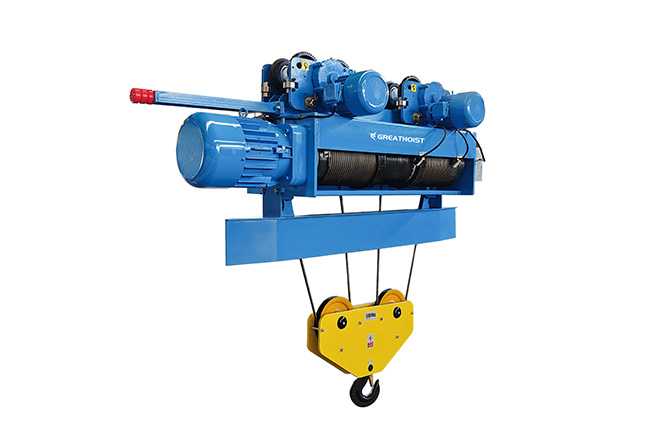

This product is designed for the new pickling galvanizing industry special products, low headroom compact, suitable for acid house and track limited sites, can maximize the effective lifting height; It owns following features.
Low headroom, compacted design
Double electron limit

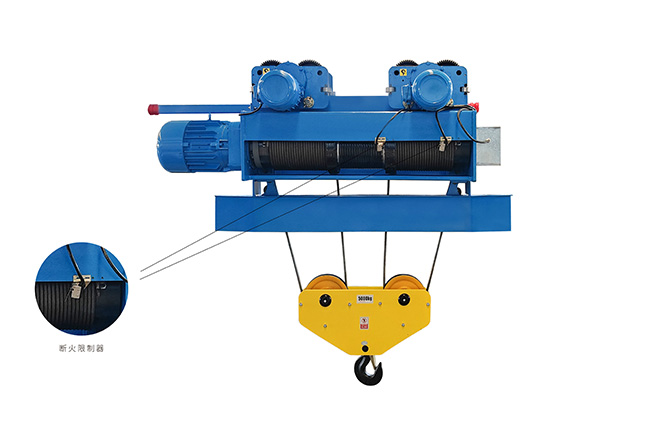

Electron limit plus spiral limit
Protection class IP55
Working class M5
Applicable place: acid house and track limited sites
Purpose: special for pickling and galvanizing industry
|
Capacity(t) |
2 |
3 |
5 |
10 |
16 |
|
Hoisting height (m) |
6-30 |
6-30 |
6-30 |
6-30 |
9-24 |
|
Ratio |
1/2, 2/4 |
1/2,2/4 |
1/2,2/4 |
1/2,2/4 |
1/2,2/4 |
|
Hoisting speed (m/min) |
8, 8/3.3 |
8, 8/3.3 |
8, 8/2.6 |
7, 7/2.6 |
4, 4/1 |
|
Hoisting motor (kw) |
3.0 |
4.5 |
7.5 |
13 |
13 |
|
Traveling speed (m/min) |
20 |
20 |
20 |
20 |
20 |
|
Traveling motor (kw) |
0.4 |
0.4 |
0.75 |
0.75*2 |
0.75*2 |
|
Class |
M5 |
M5 |
M5 |
M5 |
M5 |
|
Operation |
Remote control/ Full Automatic |
||||
|
Power supply |
3Ph,380V,50Hz |
||||
